Description

Power A MM11 Electronic Control Package Single Engine/Single Station – Mechanical Throttle/Mechanical Shift

Power A Mark II™ Electronics Control Systems:

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication w/electronic engines (SAE J 1939 or NMEA 2000)
• Plug’N Play connectivity
• Automatic engines synchronization
• Dock Assist
• Fully programmable shift delays

MM11 Package Includes:

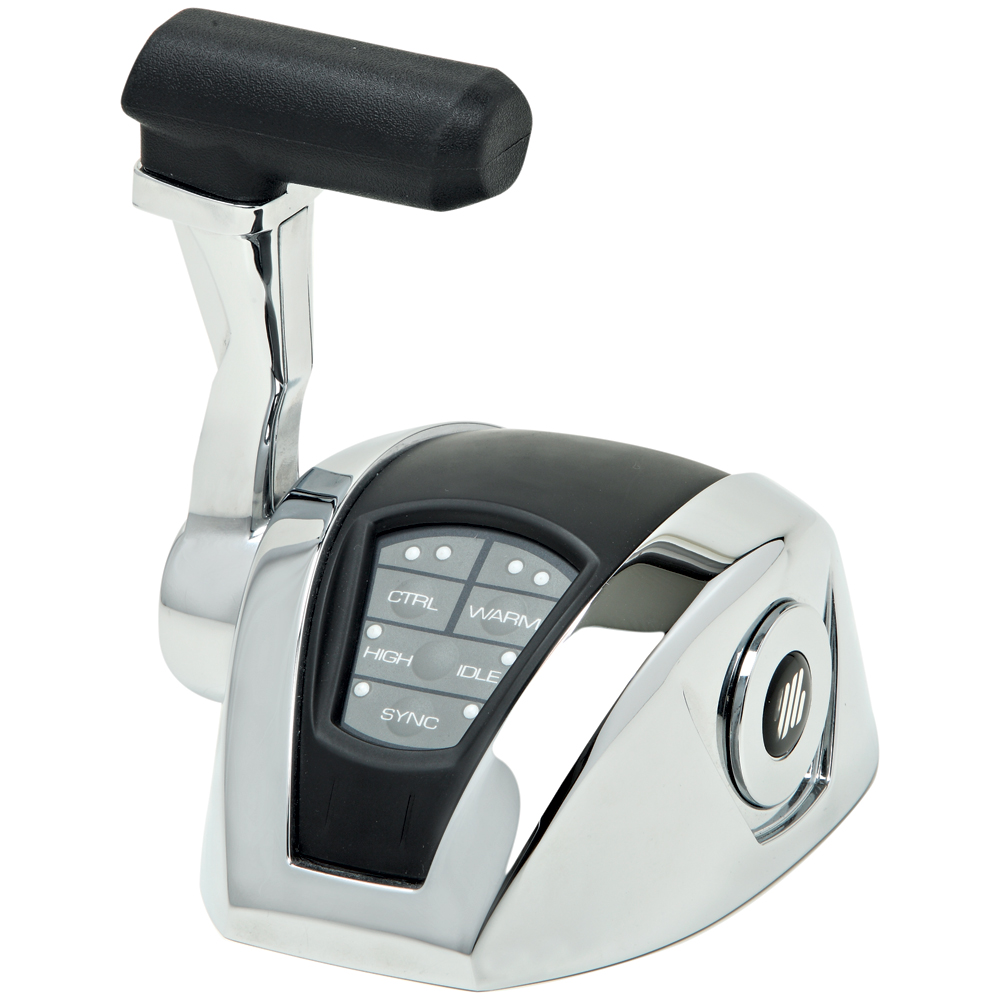

• 42009G – (1) PA2-B1 – Single Lever Control w/o Trim
• 42017F – (1) PA2-CU – Control Unit w/LED Diagnostc & Programming Screen
• 42027J – (2) PA2-MA – Electro Mechanical Actuatorf/Shift and/or Throttle
• 42028L – (1) PA2-NT – Network Terminator
• 42053K – (1) M-P3 – Main Power Supply Cable, 9.8′
• 71021K – (1) CAN-10 – Network Connection Cable 33′
• 73639T – (2) CAN-1 – Network Connection Cable 3′
• 42026G – (1) PA2-PU – Power Supply Unit f/12V Systems
• 42056S – (2) M-PE1 – Power Extension Cable 3.3′
